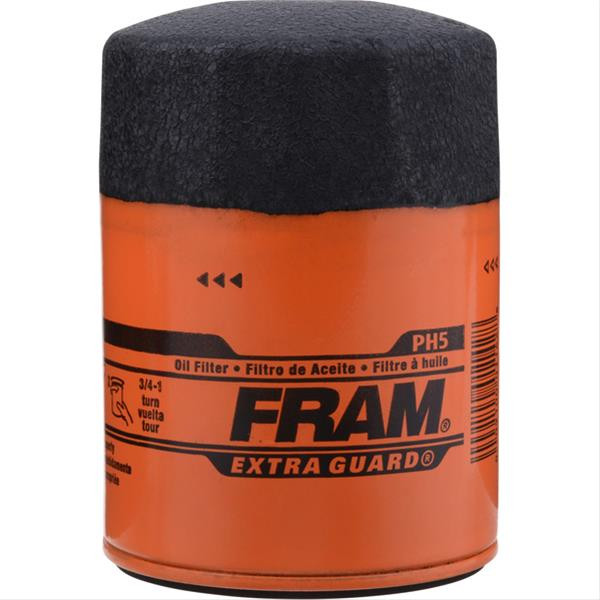

Fram Extra Guard Oil Filters PH5

13/16 in.-16

Height (in.):

5.170 in.

Outside Diameter (in.):

3.780 in.

Filter Bypass Relief Valve:

No

Anti-Drainback Valve:

Yes

Relief Valve Open (psi):

8-10 psi

Smallest Particle Filtered:

20 microns

Gasket Outside Diameter (in.):

3.563 in.

Gasket Inside Diameter (in.):

3.125 in.

Gasket Thickness (in.):

0.250 in.

Fram Extra Guard Oil Filters

With an ideal balance of dirt-trapping efficiency and dirt-holding capacity, Fram Extra Guard oil filters use a special blend of fibers and resin to create a proprietary filter media that delivers excellent engine protection. Extra Guard filters are the perfect filter for everyday drivers who perform frequent maintenance on their vehicles

Features include:

* Engineered for conventional motor oil

* Cellulose and glass blended media provides protection for up to 5,000 miles

* 95 percent filtration efficiency

* Internally lubricated sealing gasket for easier filter removal

* Precision-molded nitrile anti-drainback valve for start-up engine protection

* Coil spring with glass fiber reinforced nylon poppet relief valve

* Sure Grip coating provides a non-slip finish for easier installation and removal
