Flamethrower Tändspole Svart 1,5 Ohm
Artnr: PNX-40011
Lagerstatus:
I lager
Leveransstatus: Skickas snarast
Varan finns normalt i lager för direkt leverans.
Beskrivning

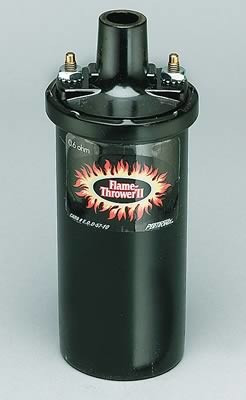

Flamethrower Tändspole Svart
For use with the original Pertronix Ignitor ignition. Can also be used with other induction ignition systems that are compatible with 1.5 ohm ignition coils.
Primary Resistance:1.500 ohms
Coil Internal Construction:Oil-filled
Coil Color:Black
Maximum Voltage:40,000 V
Turns Ratio:115:1
Secondary Resistance:10.60K ohms
Inductance:6.40 mH
Peak Current:7.2 amps
Spark Duration:1.5 mS
Mounting Bracket Included:No
Coil Wire Included:No
Ballast Resistor Included:No
Coil Shape:Round
Diameter (in):2.125 in.
Height (in):6.000 in.
